Product Details:
Payment & Shipping Terms:
|
| Application: | Airport Equipment | Standard Passenger Seats: | 110 |
|---|---|---|---|
| Engine: | Cummins | Standing Area: | 24m2 |
| Highlight: | Airport Coaches,nice airport shuttle bus |
||

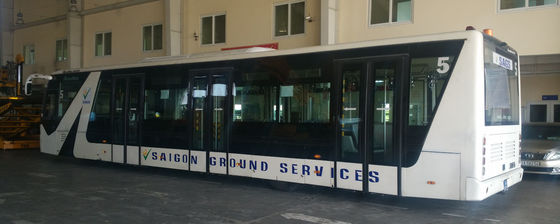

first class Aero Bus equivalent to Cobus3000S with high passenger capacity and durable service years
Description:
Xinfa is the second world biggest airport apron bus (Aero ABus for trade mark )manufacturer only to Cobus, With 18 years airport apron bus production experience, integrated with design, manufacture, sales and service, Xinfa has became the most professional GSE manufacturer.
Up to now, there are more than 534 units of Xinfa airport apron bus under service worldwidth. To occupy about 70% domestic market share, 80 airports, and sales to more than 25 countries.
Specification:
| Length: | 13.310 mm | 14.720 mm | 13.310 mm | 14.720 mm |
| Width: | 2.750 mm | 3.170 mm | ||
| Height: | 2.960 mm | |||
| Wheelbase: | 6.800 mm | 8.210 mm | 6.800 mm | 8.210 mm |
| Wheeltrack, front: | 2.170 mm | 2.170 mm | 2.146 mm | 2.146 mm |
| Wheeltrack, rear: | 2.152 mm | 2.152 mm | 2.462 mm | 2.462 mm |
| Angle of approach: | 5� | |||
| Angle of departure: | 4� | |||
| Turning circle (�): | 26.478 mm | 30.434 mm | 26.760 mm | 31.988 mm |
| Net weight: | 10.000 kg | 10.500 kg | 11.000 kg | 11.500 kg |
| Standing area | 18 m� | 21 m� | 22 m� | 26 m� |
| Passenger Capacity calculated for : | ||||
| 4 Passengers/m� (IATA AHM 950) 5 Passengers /m� 6 Passengers /m� |
72 90 108 |
84 105 126 |
88 110 132 |
104 130 156 |
| Standing height, interior: | 2.400 mm | |||
| Floor height: | 350 mm (Kneeling: 280 mm) |
|||
| Door width: | 1.350 mm | |||
